Solo 20 – The Revolutionary Electric Powered Dolly
Discover our motorized machinery dolly designed to ease the movement of heavy loads up to 20T.
How does it work?
When it comes to moving heavy loads, the Solo 20 is THE simple solution! Simply lift the load using two toe jacks, then slide the skates and robot underneath. You’ll be able to move your equipment with ease, even in confined spaces!

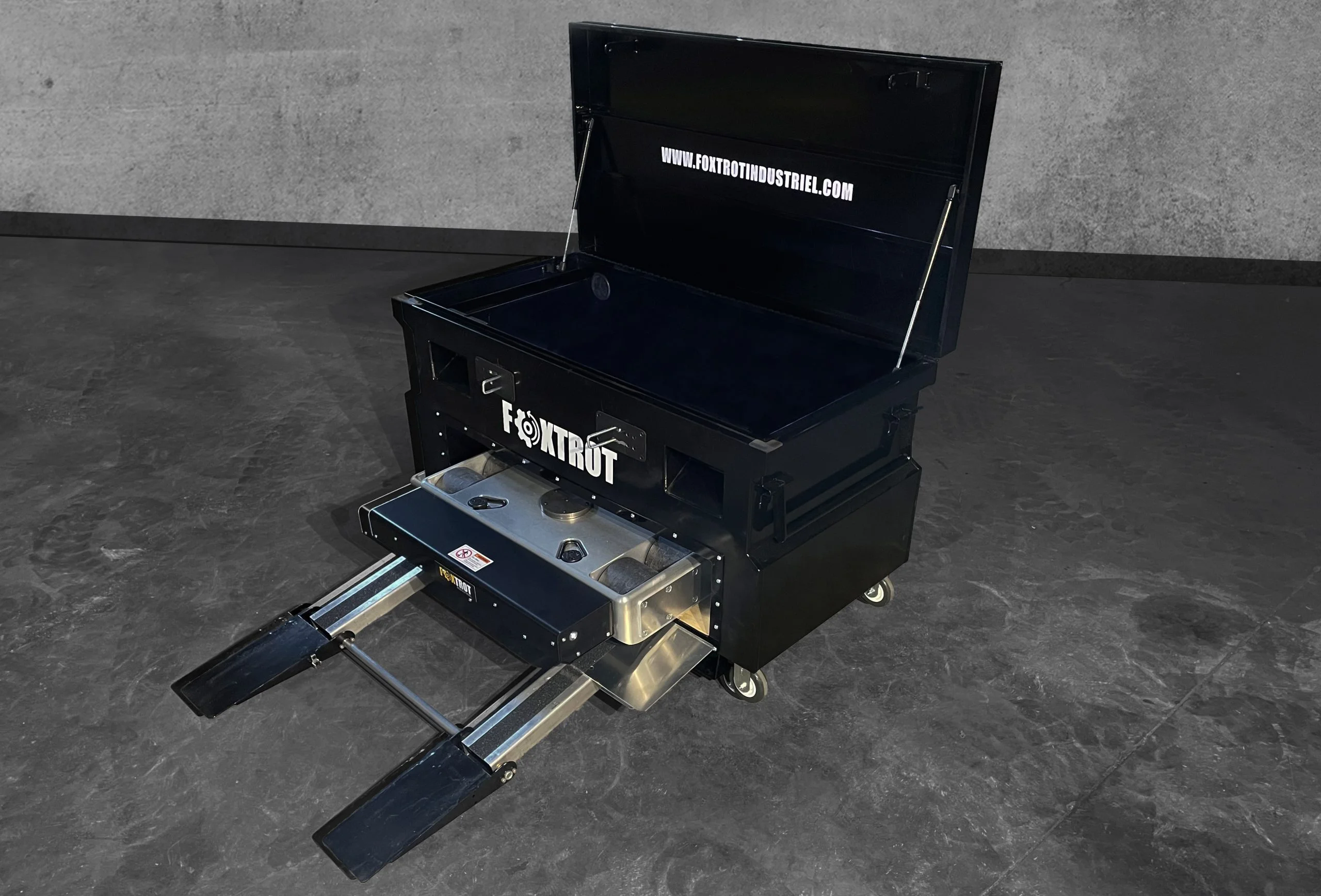

What is in your worksite box
Solo 20
With its 20 T capacity, the Solo 20 is the most popular dolly in its range. It offers the best performance in load capacity and compact size.
SK20 Skates
The SK20 skates adapt to different geometries with their multi-position alignment bar. The 6″ non-marking wheels of the SK20 skates limit rolling resistance. With their integrated handles, they are easy to transport.
Remote Control
All Solo products come with a wireless remote control including a certified emergency stop and a signaling horn.
2 Batteries
Use Solo 20 replacement batteries to keep your Solo running without interruption. The custom-made lithium batteries optimize autonomy while being compact.
Magnetic Safety Blocks
- Prevent loads from falling over if a skate slips
- Reduce risks of injury
- Reduce spotter need
- Useful for conventional dollies and robots
- Stackable blocks to adjust height
4X – MBSOLO1 6″ X 6″ X 1″ Block
4X – MBSOLO1 6″ X 6″ X 2″ Block
4X – MBSOLO1 6″ X 6″ X 4″ Block
![Worksitebox solo 20 worksite box solo 20](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Worksitebox-solo-20.png)
Caracteristics
Caracteristics
![Solo 20 Solo 20](https://foxtrotindustriel.com/wp-content/uploads/2024/02/SL20_5-1-copie.png)
![Capacity icon](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Capacity-logo.png)
Capacity
20T | 44 000 Ib
![Size icon](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Size-logo.png)
Size
175 X 763 X 511mm
6,9’’ X 30’’ X 20’’
![Weight icon](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Weight-logo.png)
Weight
100kg | 220Ib
![Autonomy icon](https://foxtrotindustriel.com/wp-content/uploads/2023/10/autonomy-logo.png)
Autonomy
6h
![Recharge Time icon](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Recharge-time-logo.png)
Recharge Time
3h
![Interchangeable Battery icon](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Interchangeable-Battery-logo.png)
Interchangeable Battery
Yes
![Speed icon](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Speed-logo.png)
Speed
0,5km/h | 0,3mph
![Operation temperature icon](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Temperature-logo.png)
Max Temperatures
-20°C to 50°C
-4 to 122F

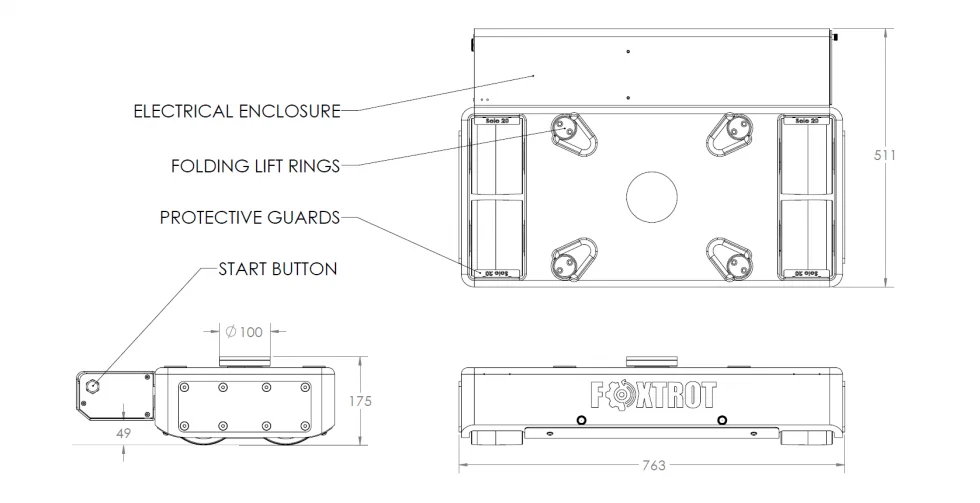

![Dimensions Solo 20 ENG Dimensions solo 20](https://foxtrotindustriel.com/wp-content/uploads/2023/10/Dimensions-Solo-20-ENG-1.png)
![SK20 Drawing SK20 Dimensions](https://foxtrotindustriel.com/wp-content/uploads/2024/02/Dimensions-SK20-Eng.png)
